Description

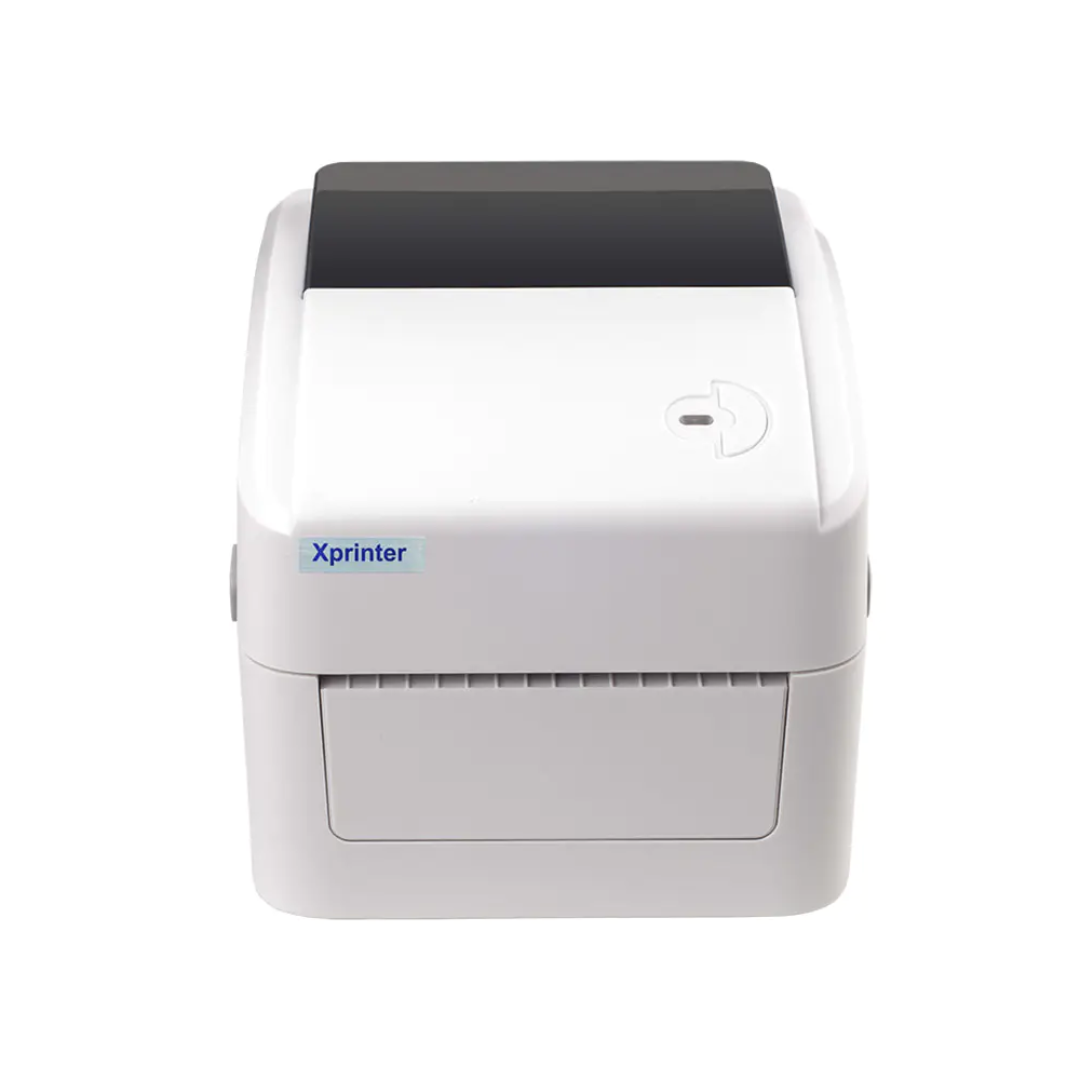

XP-420B is the new model of Xprinter’s 4 inches label printer. Its shell design looks so elegant . Having a space-saving body but keeping a large paper loading container.
One multi-functional button and one two-color indicator, simple operation.
● 152 mm (6”) / s Max. high speed print speed
● 203 dpi resolution models
● 8MB SDRAM，8 MB Flash
● High quality double-walled clamshell design
● Print head temperature intelligent control system make sure printer output stably
Product Specification
Model XP-420B
Printing Features
Resolution 203 DPI
Printing method Direct Thermal
Max.print speed 152 mm (6”) / s Max.
Max.print width 108 mm (4.25”)
Max.print length 1778 mm
Media
Media type Continuous, gap, black mark, fan-fold and punched hole
Media width 25.4 mm ~ 115 mm
Media thickness 0.06~0.254 mm (2.36~10mil)
Media core diameter 25.4 ~ 76.2 mm (1 “~ 3 “)
Label length 10 mm ~1778 mm
Performance Features
Processor 32-bit CPU
Memory 8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded to Max. 4 GB
Interface
Standard version: USB Optional:Lan/WIFI/Bluetooth/TF card
Sensors
①Gap sensor
②Cover opening sensor
③Black mark sensor
Fonts/Graphics/Symbologies
Internal fonts 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D bar code
Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,GS1 DataBar, Code 11
2D bar code PDF-417, Maxicode, DataMatrix, QR code, Aztec
Rotation
0°、90°、180°、270°
Emulaion TSPL、EPL、ZPL、DPL
Physical Features
Dimension 215 mm (L) x 178 mm (W) x 155 mm (H)
Weight 1.31 kg
Reliability
Warranty One year
Print head life 30 km or first arrival first
Software
Driver Windows/ Linux/ Mac
SDK Windows/ Android/ iOS
Power supply
Input AC 110-240V
Output DC 24V 2.5A
Options
Factory Options ①Peeler ②Cutter ③RTC
Dealer Options ①External paper roll holder
②Paper roll spindle
③Extension board for external paper roll holder
Environmental Conditions
Operation environment 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% no condensing
Storage environment -40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% no condensing
